Original: $3,999.99
-70%$3,999.99
$1,200.00The Story
Whether you're scaling up production, inspiring future makers, or diving into CNC for the first time, the Axiom 2x2 delivers the precision, power, and reliability you need—without compromise.
Features:
- 24" x 24" cutting area with 5.5" Z-axis travel

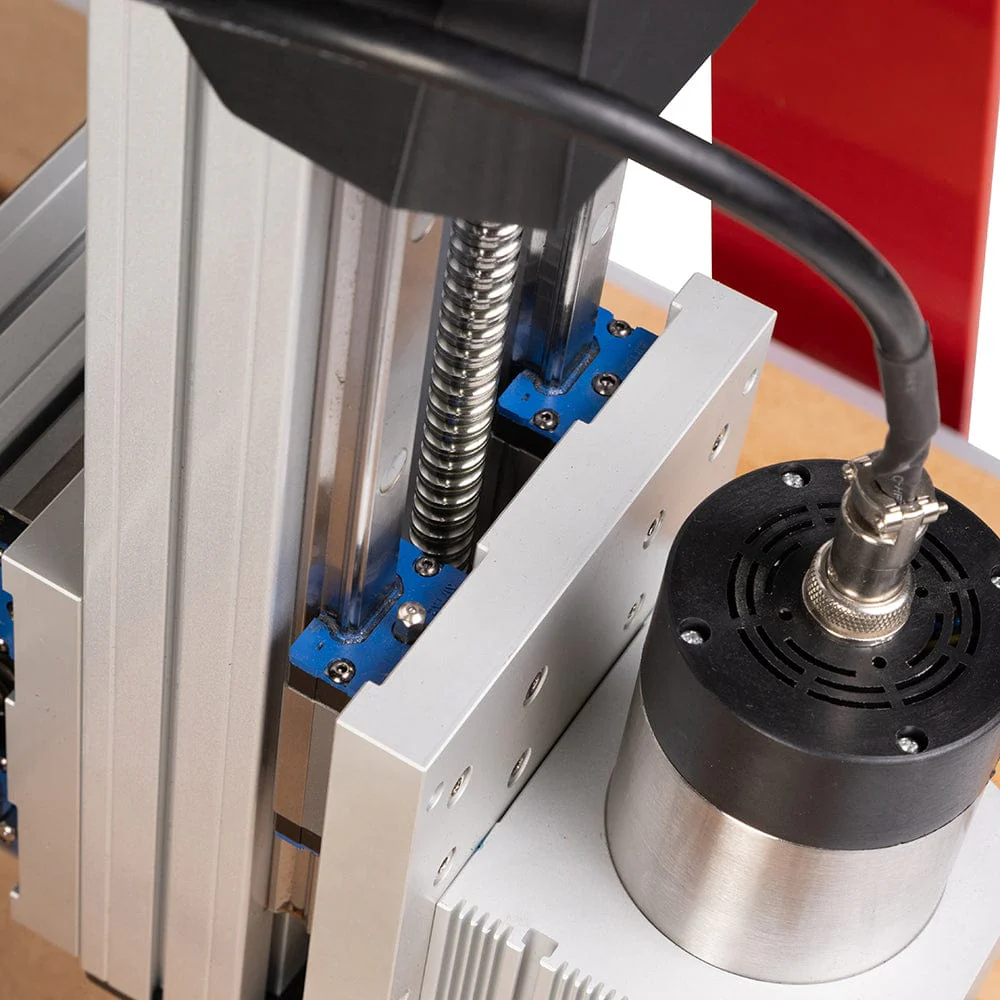

- ±0.007" accuracy with precision ball screws on all axes
- Rigid all-metal frame and extruded aluminum gantry
- 1-HP air-cooled spindle with speeds up to 24,000 RPM

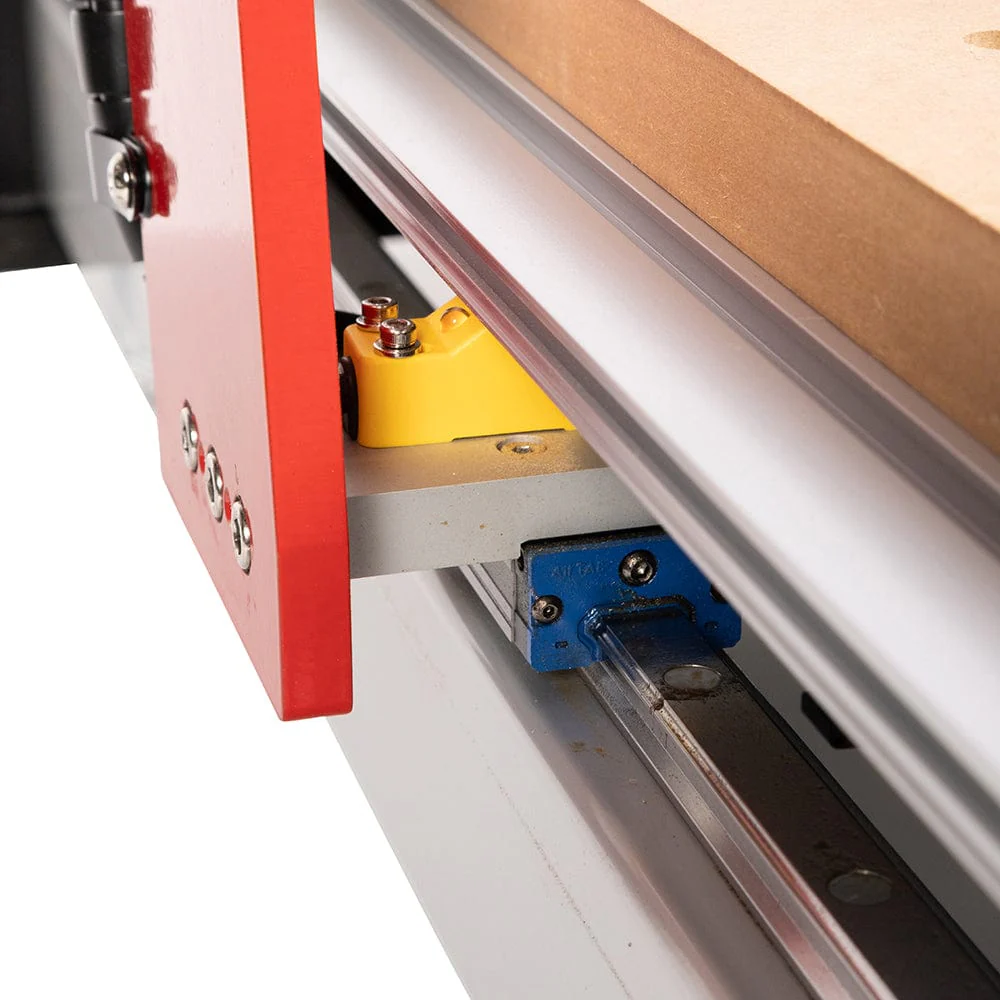

- Prismatic linear guides for smooth, repeatable motion
- Includes UCCNC software and Vectric VCarve Desktop software (Windows Compatible)
- Backed by Axiom’s expert U.S.-based support and service team
Specifications:
- Assembled Dimensions: 31.5" x 36" x 31.5"
- Cutterhead Speed: Up to 24000 rpm
- Motor: 1 HP, 5A
- Input Power: 115V Single Phase
- Motor Voltage: 220V
- Collet: 1/8" and 1/4"
- Spindle Taper: ER11
- Table Length: 24"
- Table Width: 24"
- X-Axis Travel: 24"
- Y-Axis Travel: 24"
- Z-Axis Travel: 5.5"
What's Included:
- 2x2 CNC Router Model AX1-101
- Access Accessories Kit (open wrench, chuck, puck, pads, power cord, etc)
- Spindle
- Leveling Pad (set of 4)
- 7 Board Set (5) 80mm boards, (2) 65mm boards
- Amana ER11 Spring Collet 1/4
- Amana ER11 Spring Collet 1/8
- RJ45 Ethernet cable
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 2-4 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Warranty Information
Free Technical Support direct from Axiom
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
