14" Closed Base Bandsaw - 1 HP 1 Ph 115/230V - JWBS-14CS

The Jet® Model JWBS-14CS Closed Stand 14" Bandsaw is a precision woodworking bandsaw that maximizes versatility, functionality, and affordability. Perfect for the home workshop, the JWBS-14CS requires minimal setup upon arrival and includes a 3/8" 6 TPI woodworking blade. The rigid 15" x 15" offset cast iron table combined with the stand's precision computer-balanced wheels reduce vibration contributing to a higher level of accuracy. The single-knob blade tracking adjustment, graphite-impregnated polymer blade guides, and roller-bearing thrust guides allow for a quicker setup and a cooler running blade.

Features:

• Micro-adjusting upper blade guide
• 6" resaw capacity/height, 13-1/2" cutting capacity width

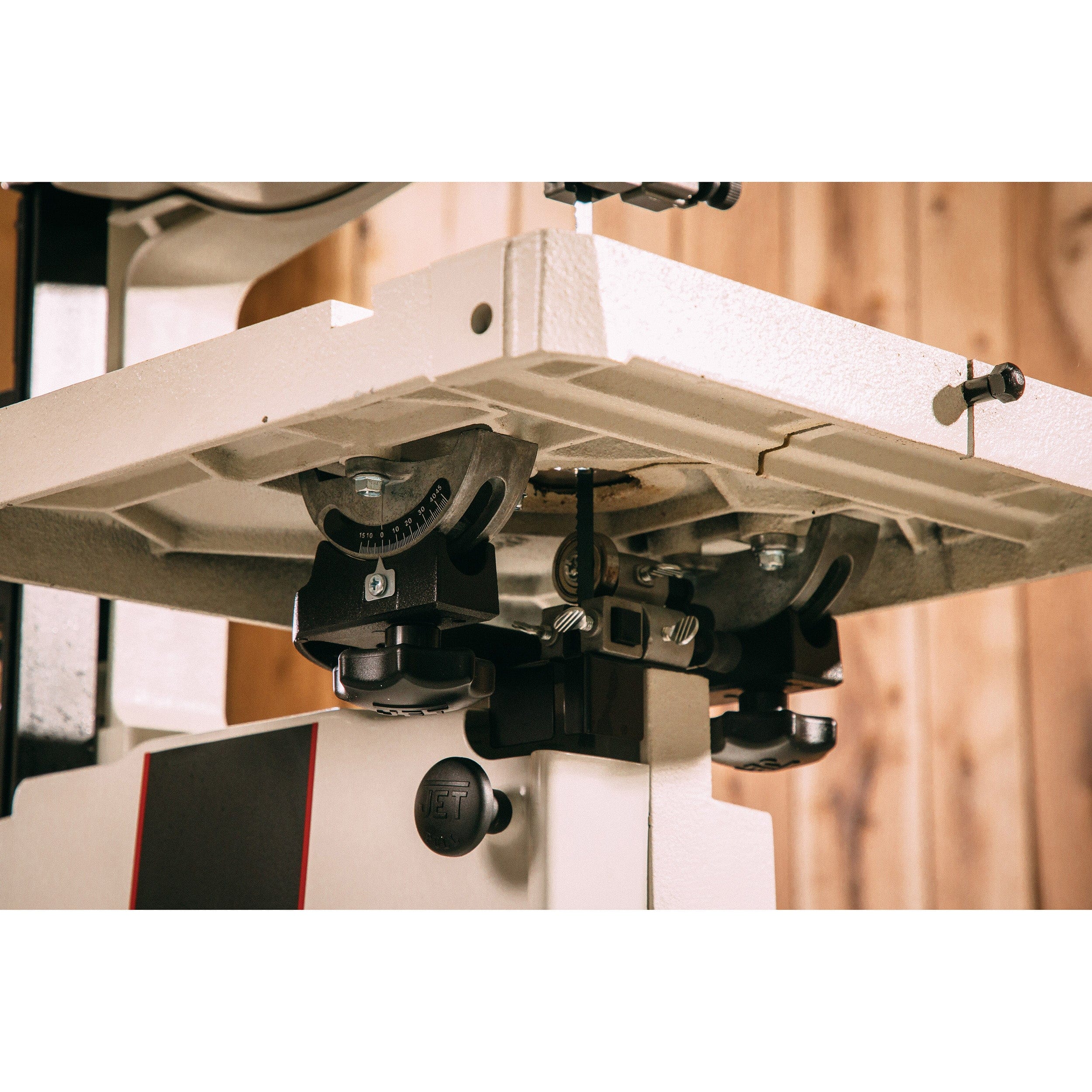

• 10° table tilt ability to the left and a 45° tilt ability to the right
• "V" groove blade guide bar for consistent positive alignment
• Graphite-impregnated Jet Blocks® for cool, true running blades
• Extra large 15" x 15" cast iron table
• Totally-enclosed, fan-cooled motor
• Built-in dust chute
• Designed to provide years of solid heavy-duty use

Specifications:

• Motor Type: TEFC (totally-enclosed fan-cooled)
• Motor Power: 1 HP
• Motor Phase: 1 Phase
• Voltage: 115/230V (prewired 115)
• Recommended Circuit Size (Amps): 20A
• Wheel Diameter: 14"
• Cutting Capacity Height: 6"
• Cutting Capacity Width: 13-1/2"
• Blade Length: 93-1/2"
• Maximum Blade Width: 3/4"
• Minimum Blade Width: 1/8"
• Blade Speed: 3000 SFPM
• Table Size (L x W): 15" x 15"
• Table Slot Size: 3/8" x 3/4"
• Table Tilt: 10° left, 45° right
• Table Height from Floor: 43-1/2"
• Overall Dimensions (L x W x H): 26" x 19" x 68"
• Dust Port Outside Diameter: 4"
• Dust Collection Minimum CFM Required: 300 CFM
• Net Weight: 185 lbs.
• Shipping Weight: 200 lbs.

What's Included:

• (1) Jet® 14" Closed Base Bandsaw - 1 HP 1 Ph 115/230V - JWBS-14CS
• (1) Woodworking Bandsaw Blade - 93-1/2" x 3/8" - 6 TPI
