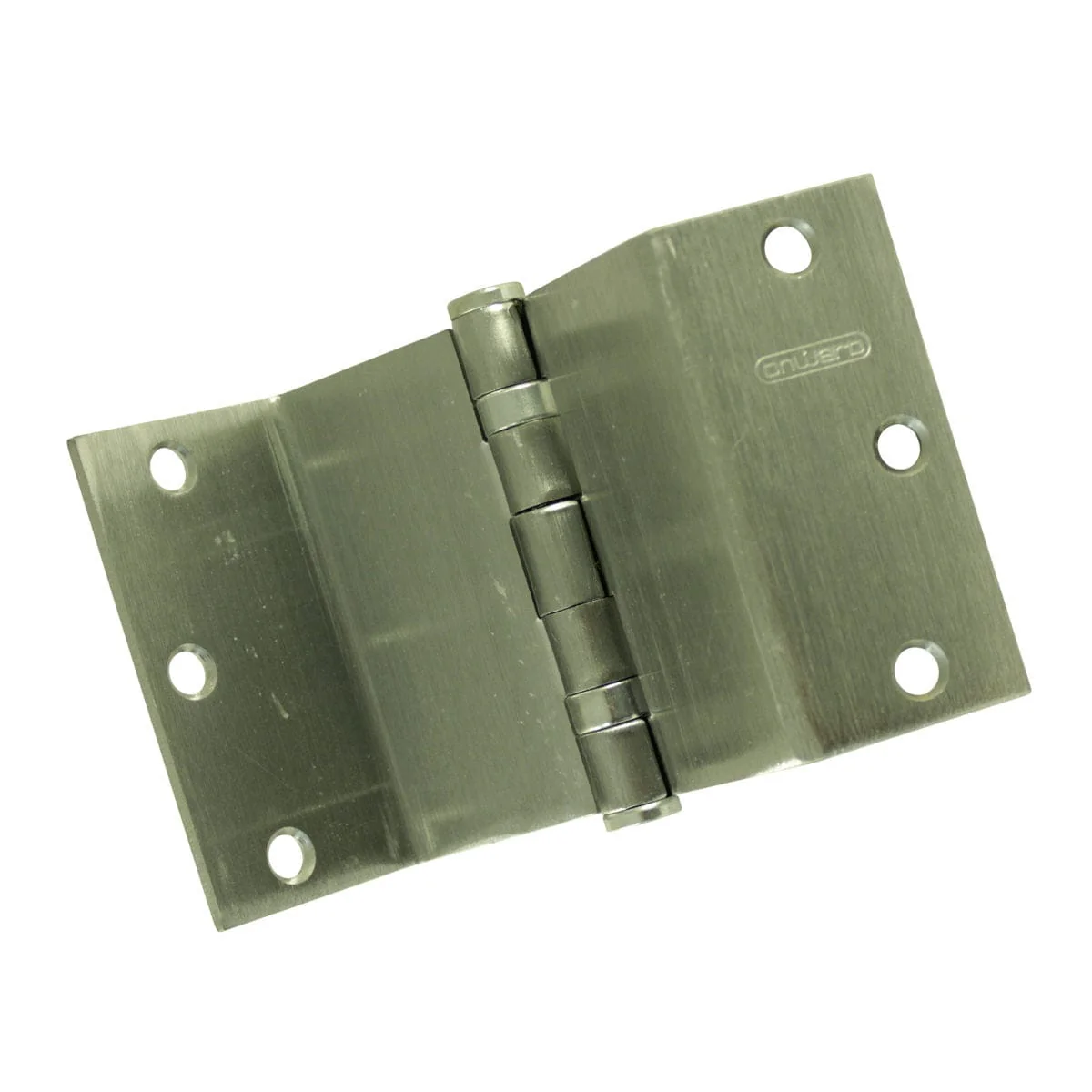

Ball Bearing Wrap-Around Swing Clear Hinge

Ball Bearing Wrap-Around Swing Clear Hinge

Ball Bearing Wrap-Around Swing Clear Hinge

Select Size

Select Features

Select Finish

From $4.95

Original: $16.50

-70%

Ball Bearing Wrap-Around Swing Clear Hinge—

$16.50

$4.95

The Story

The 3-1/2" Left Side Ball Bearing Wrap-Around Swing Clear Hinge Brushed Chrome is the perfect choice for residential or commercial doors. The unique design allows for maximum clearance by moving the hinge barrel and door edge out of the doorway. This type of hinge has additional clearance also making it easier to move furniture and other large items through door opening.

Specifications

Allows doors to swing clear of the frame opening for ease of movement
Additional clearance also makes it easier to move furniture and other large items through door opening
Ball bearing design for smooth operation
For most residential and commercial doors
ANSI A156.7 Certification
Type: Wrap-around mount hinge, opens on the left
Load Capacity: 176 lbs. (80kg)
Door Thickness: 1-1/2" (38 mm)
Hinge Opening Angle: +180 Degree
Dimensions: 3-1/2" (89 mm) L x 3-1/2" (89 mm) H x 1/8" (3.1 mm) D
Finish: Brushed Chrome, made of Steel
Included: Mounting hardware is included for an easy installation

Ball Bearing Wrap-Around Swing Clear Hinge - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

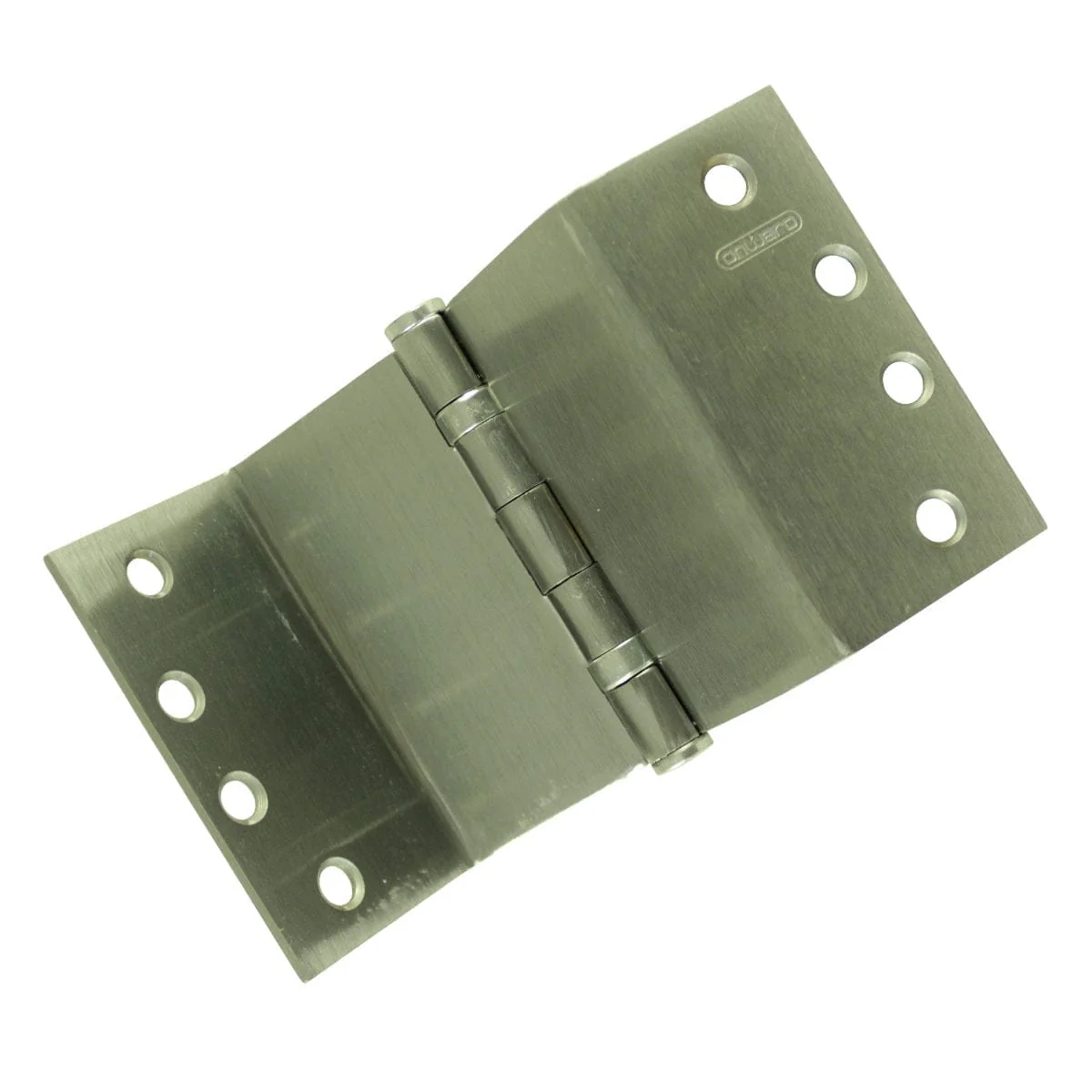

Ball Bearing Wrap-Around Swing Clear Hinge - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

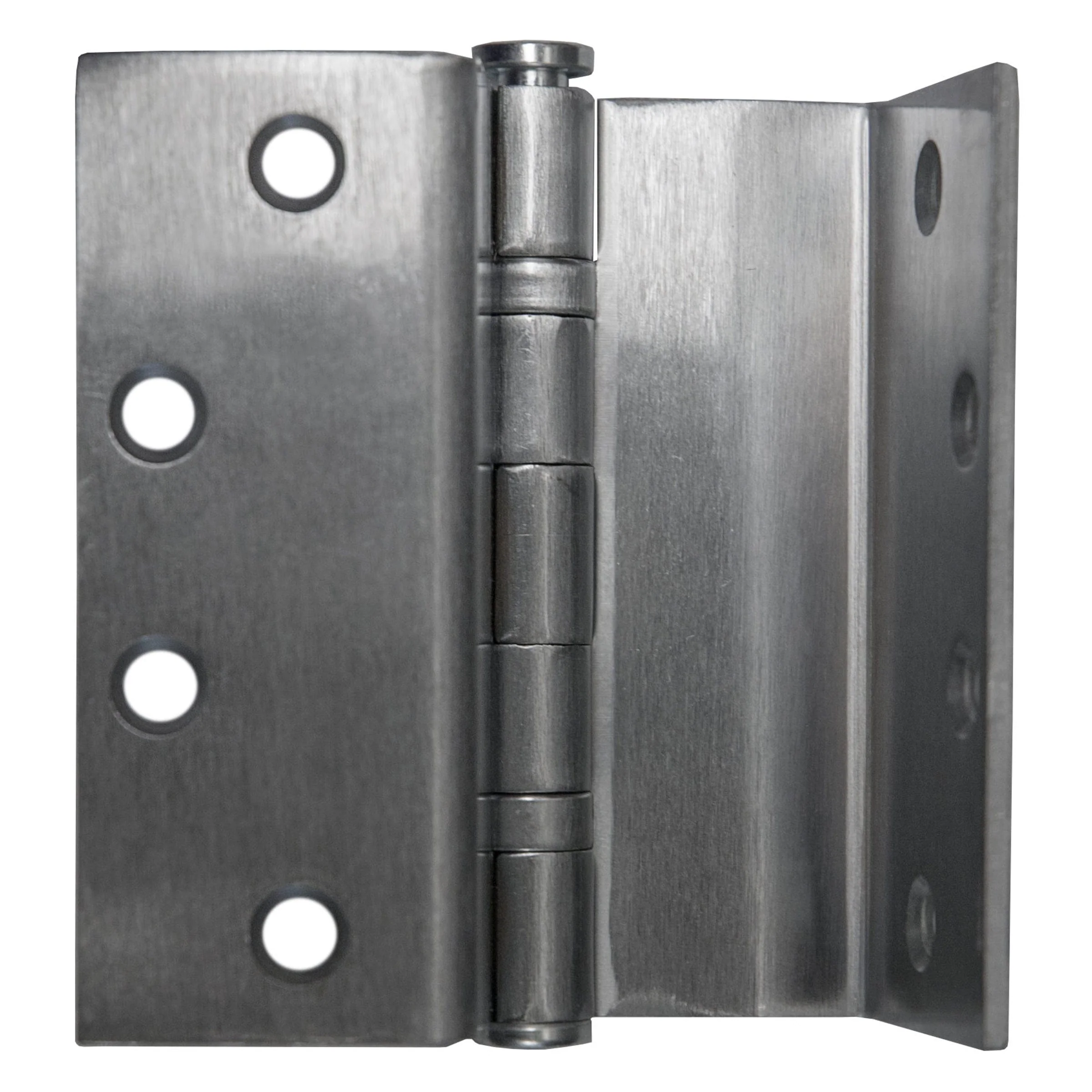

Ball Bearing Wrap-Around Swing Clear Hinge - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

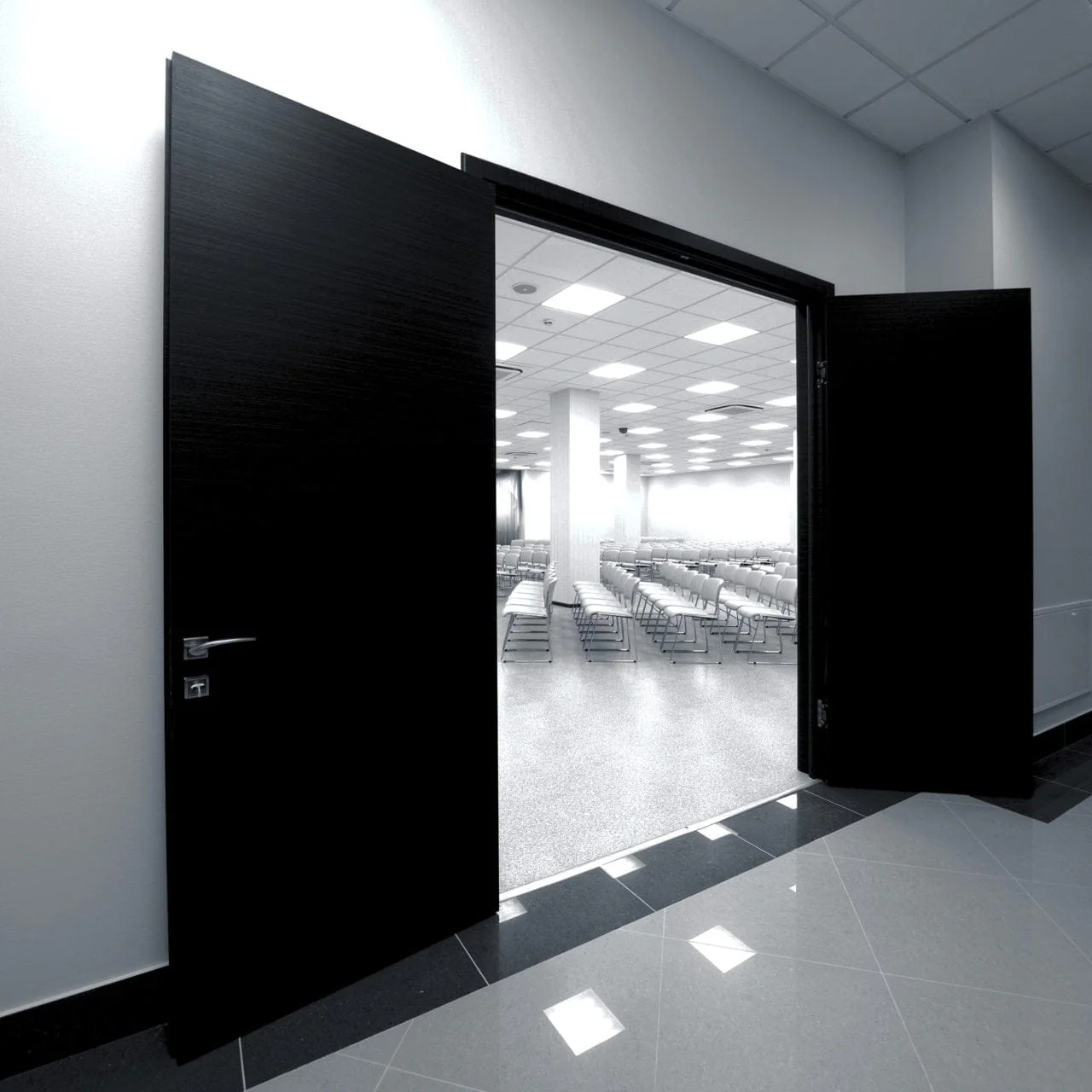

Ball Bearing Wrap-Around Swing Clear Hinge - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

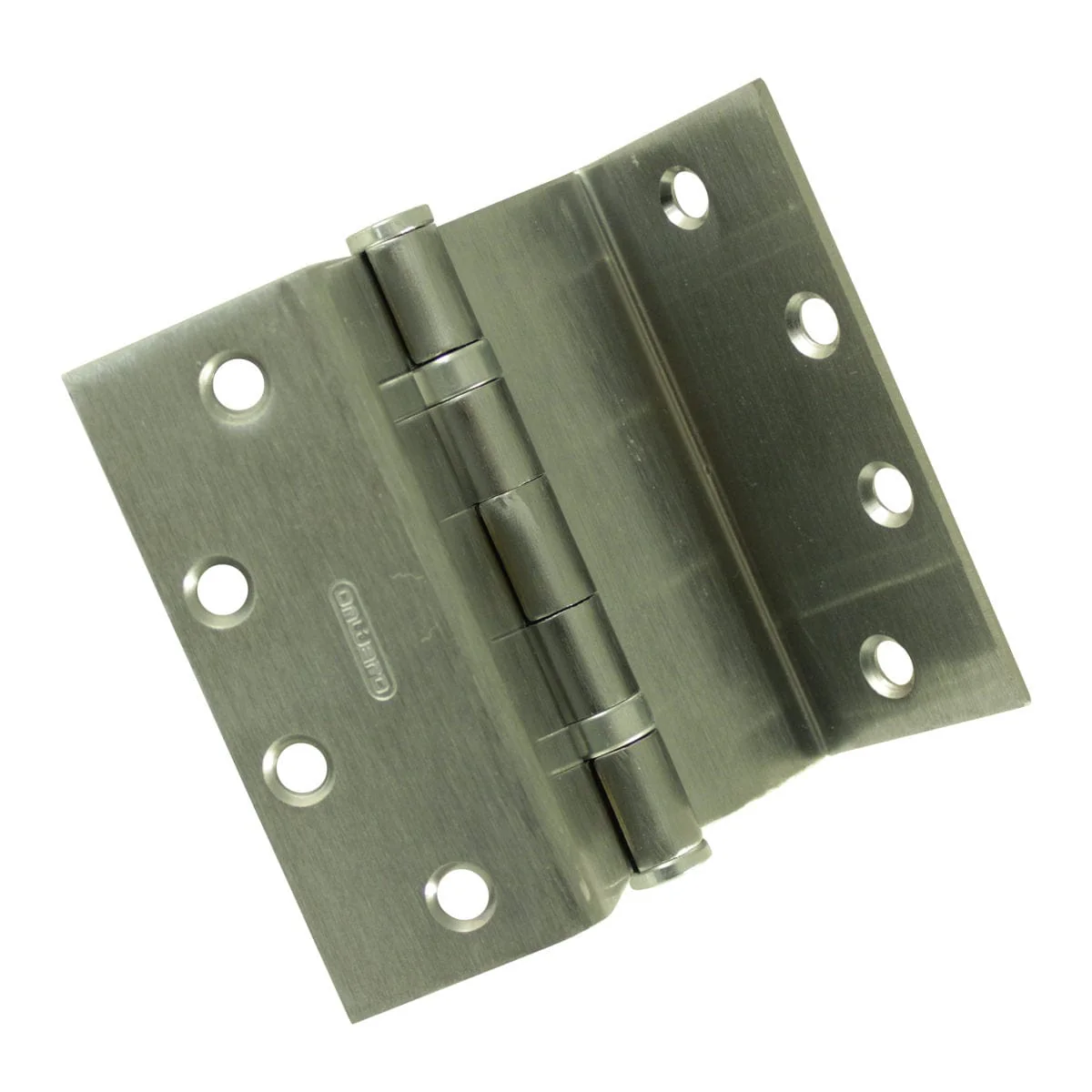

Ball Bearing Wrap-Around Swing Clear Hinge - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

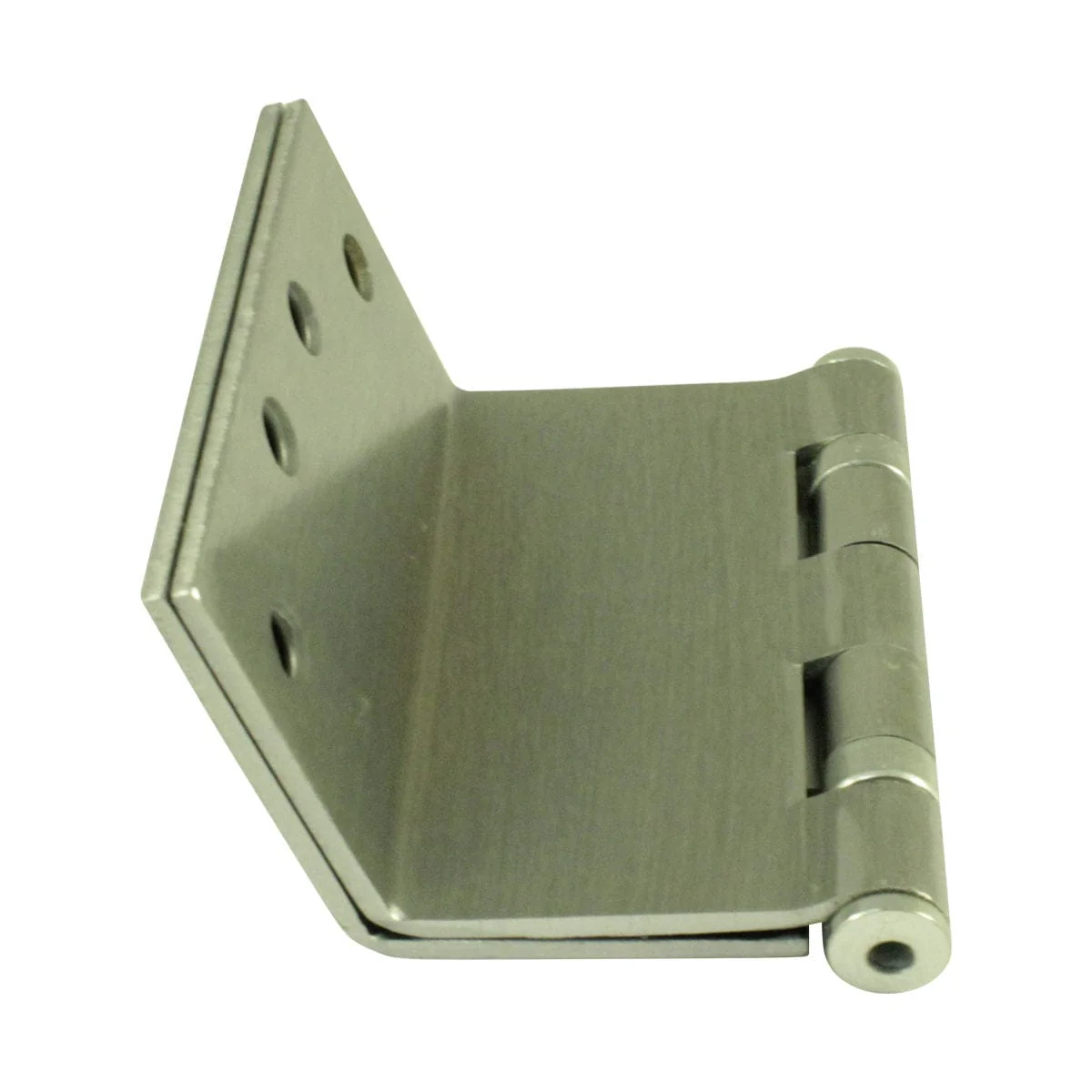

Ball Bearing Wrap-Around Swing Clear Hinge - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 16

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 17

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ball Bearing Wrap-Around Swing Clear Hinge - Image 18

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The 3-1/2" Left Side Ball Bearing Wrap-Around Swing Clear Hinge Brushed Chrome is the perfect choice for residential or commercial doors. The unique design allows for maximum clearance by moving the hinge barrel and door edge out of the doorway. This type of hinge has additional clearance also making it easier to move furniture and other large items through door opening.

Specifications

Allows doors to swing clear of the frame opening for ease of movement
Additional clearance also makes it easier to move furniture and other large items through door opening
Ball bearing design for smooth operation
For most residential and commercial doors
ANSI A156.7 Certification
Type: Wrap-around mount hinge, opens on the left
Load Capacity: 176 lbs. (80kg)
Door Thickness: 1-1/2" (38 mm)
Hinge Opening Angle: +180 Degree
Dimensions: 3-1/2" (89 mm) L x 3-1/2" (89 mm) H x 1/8" (3.1 mm) D
Finish: Brushed Chrome, made of Steel
Included: Mounting hardware is included for an easy installation
