Oscillating Spindle/Belt Sander

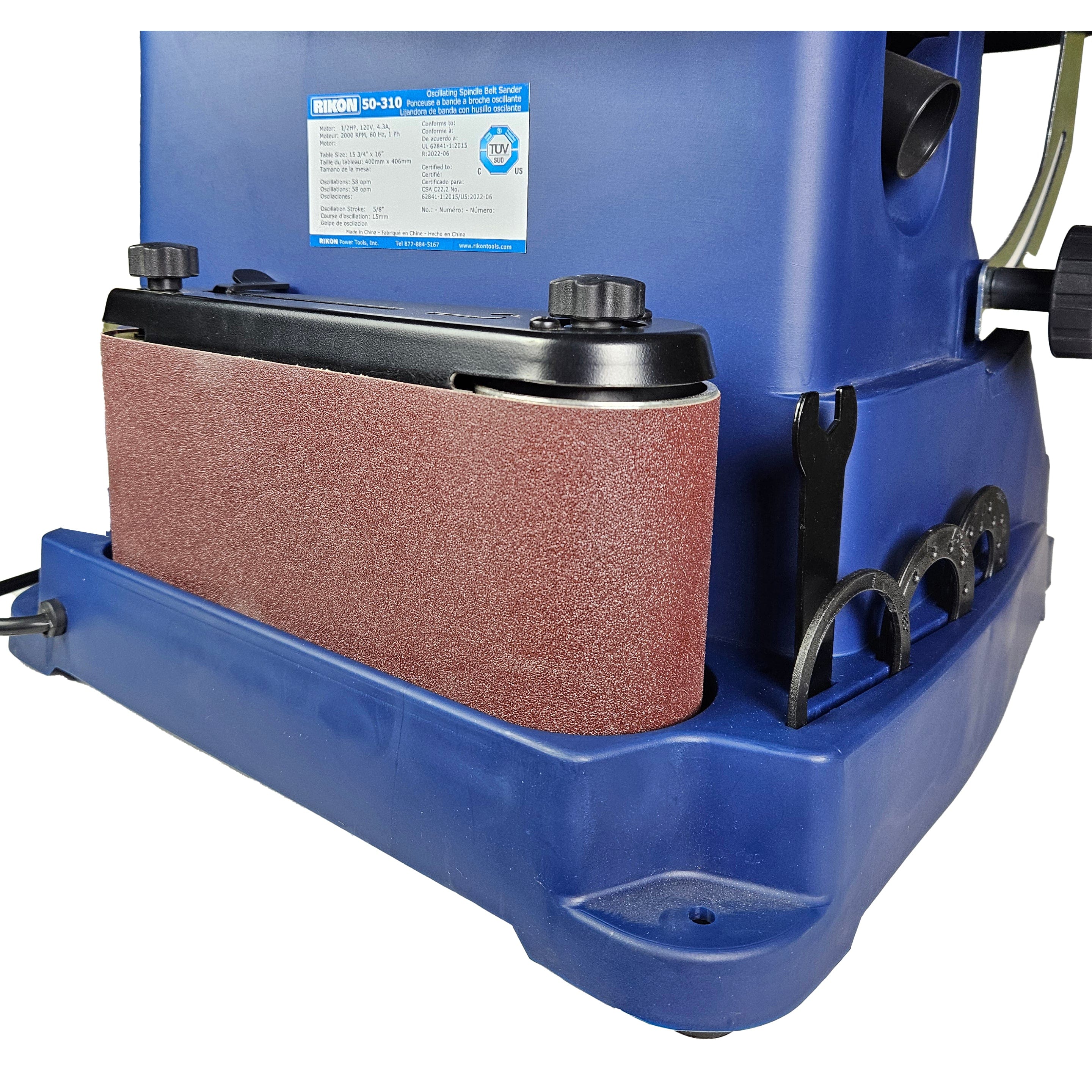

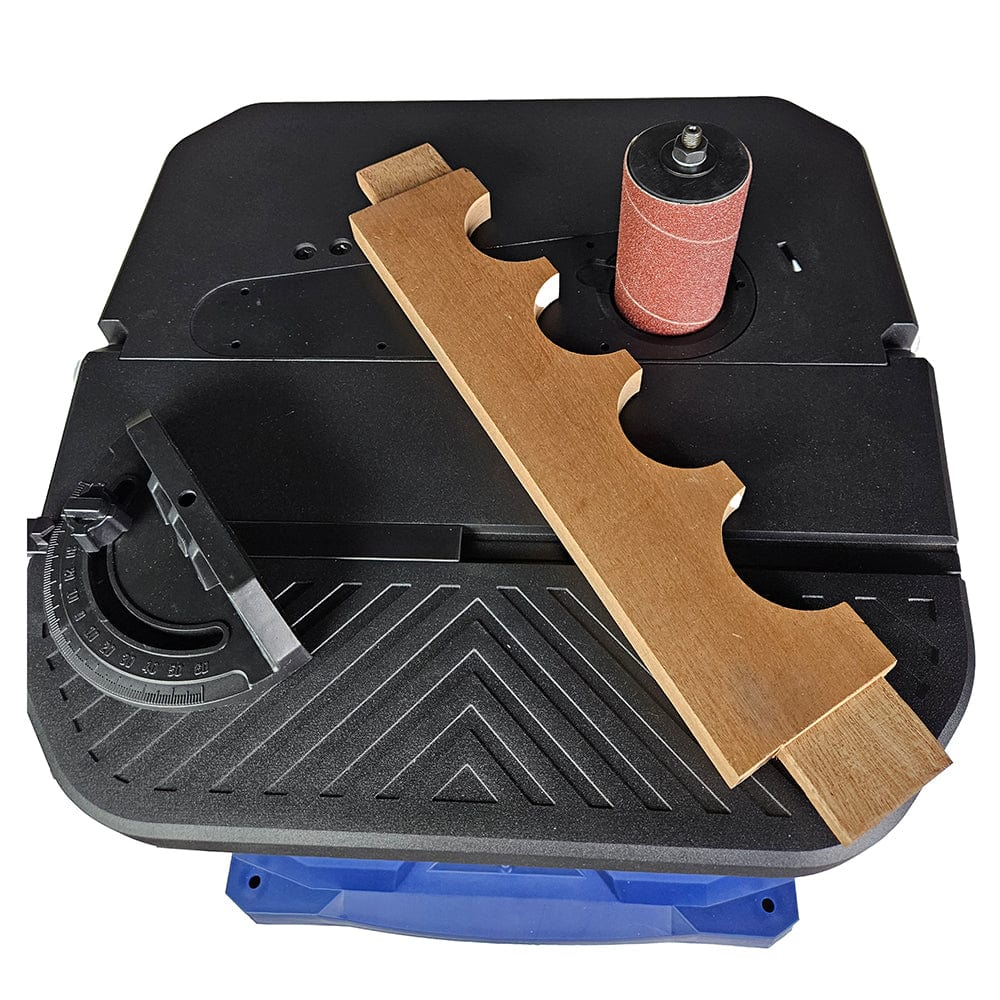

Oscillating Belt/Spindle Sander Model 50-310 is a specialized sander for the fast and accurate sanding of curved board edges. The 4” x 24” belt and spindle sanding sleeves oscillate up-and-down 5/8”, 58 time per minute while the spindle spins, providing more efficient abrasive cutting action. Powerful 1/2 HP motor, ample cast metal table and 5 spindle diameters (1/2” to 2”) with 6 table inserts make this a valuable machine for every shop. Includes 4-1/2” long 80 grit abrasives.

• 1/2 HP Motor
• Multiple Inserts Included
• Multiple Spindles Included
• Table Tilt 0-45° Forward
• Dual Tool Holders
• 1-1/2″ Dust Ports

• Motor Horsepower: 1/2 HP
• Motor Amps: 4.3 A
• Motor Volts: 110V, 60 Hz
• Speed: 2,000 RPM
• Table Size: 12-5/8” x 12”
• Spindle Length: 4-1/2”
• Spindle Diameters: 1/2”, 3/4”, 1”, 1-1/2”, 2”
• Sanding Belt: 4”x 24”
• Dust Outlet: 1-1/2” O.D or 1-5/16” ID
• Height (overall): 18-1/4”
• Width: 17
• Depth: 18
• Base Size (LxW): 16” x 18-1/4”
• Net Weight: 27.5 lbs.
• Warranty: 5 Years

• Multiple Inserts
• Multiple Spindles
• 5 Year Warranty
