$2,899.00
Origin Handheld CNC Router—
$2,899.00
The Story
Bring digital precision to the craft of woodworking with Origin – the handheld CNC router. Cut with unparalleled precision, flexibility and efficiency. Origin is the world’s first hand-held CNC router. With onboard automatic cut correction, Origin makes precision cutting easy. Avoid the envelope limits of traditional CNC machines and tackle projects at a wide range of scales with a single, compact tool. With annual system updates and optional extensions, Origin is the only power tool that gets better with age. Create simple designs on the tool itself, or using Shaper Studio. You can also upload an existing design of your own.
Features:
- Automatic cut correction
- No programming required
- Intuitive touch screen interface
- On-tool design
- Suitable with a range of router bits
- Precise depth control
- Easy adjustments for tight fitting joints
- Cut perfect box joints and mortise and tenons
- Work at any scale
Specifications:
- Input Power: 120VAC, 60Hz. 7A
- Spindle Motor: 720W brushed AC motor, 10,000 - 26,000 RPM with load-compensating speed control, Soft-start, over-temperature and over-load safety cut-offs
- Collet: Includes a 1/4" collet that accepts any commonly available 1/4" shank router bits,1/8" collet sold separately (#190957)
- Depth Control: 43 mm (1.7”) of total Z-axis travel, digitally adjustable depth-of-cut, automated touch-off sensor
- Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction, 34 mm inner diameter by 39 mm outer diameter port dimensions, fits most standard 27 mm (35 mm OD) and 36 mm suction hoses (e.g. Festool, Fein)
- Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates, USB port allows easy offline transfer of design files

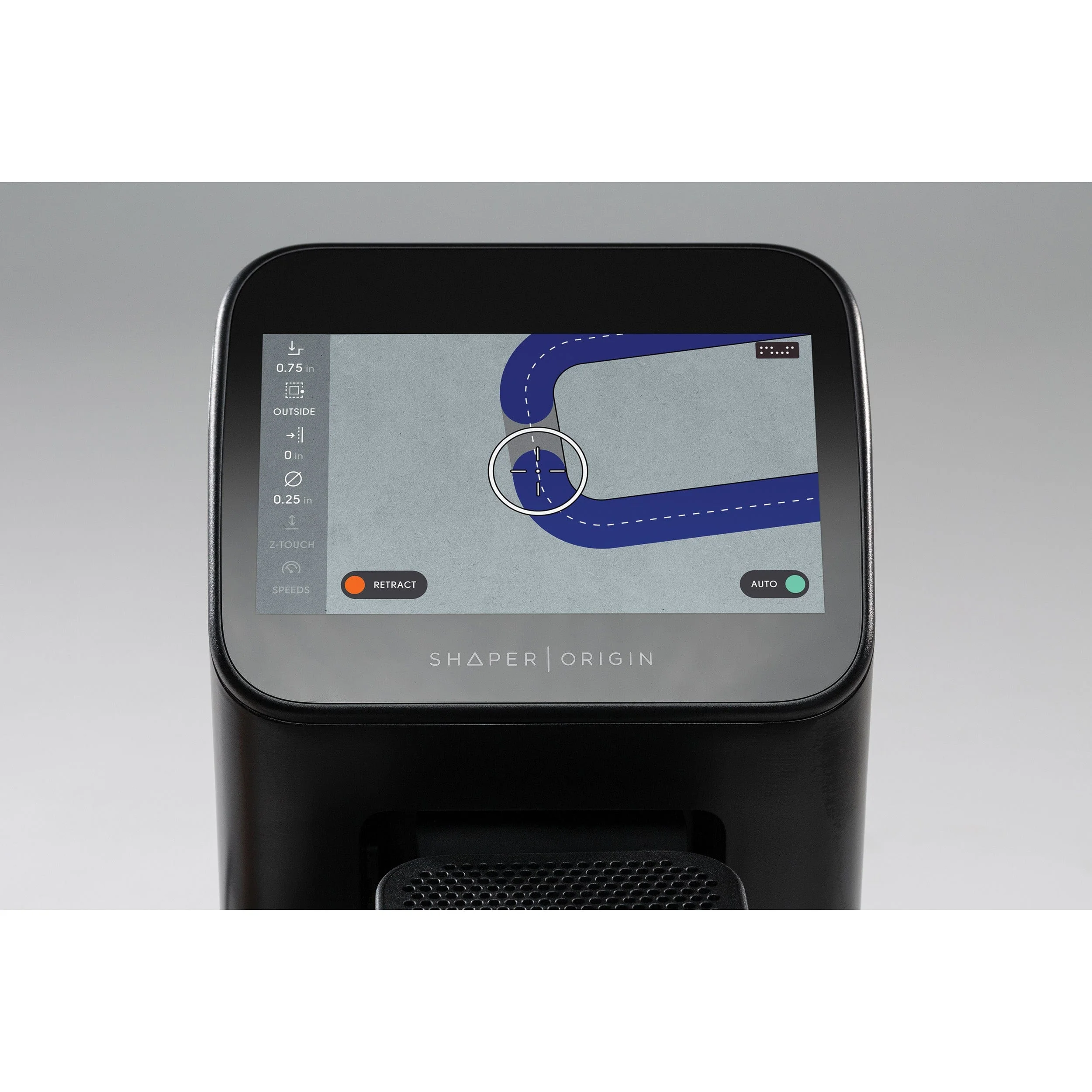

- Touch Screen: Capacitive multi-touch full-color LCD
- Dimensions: Origin: 13.35” (handle-to-handle) x 8.94” x 12.04”, Systainer: 15-1/2" x 11-1/2" x 17” (SYS 5 T-LOC Systainer)
- Weight: Origin: 14.9 lbs, packaged (with accessories) in Systainer: 23.5 lbs
What’s Included:
- (1) Shaper Origin Handheld CNC Router

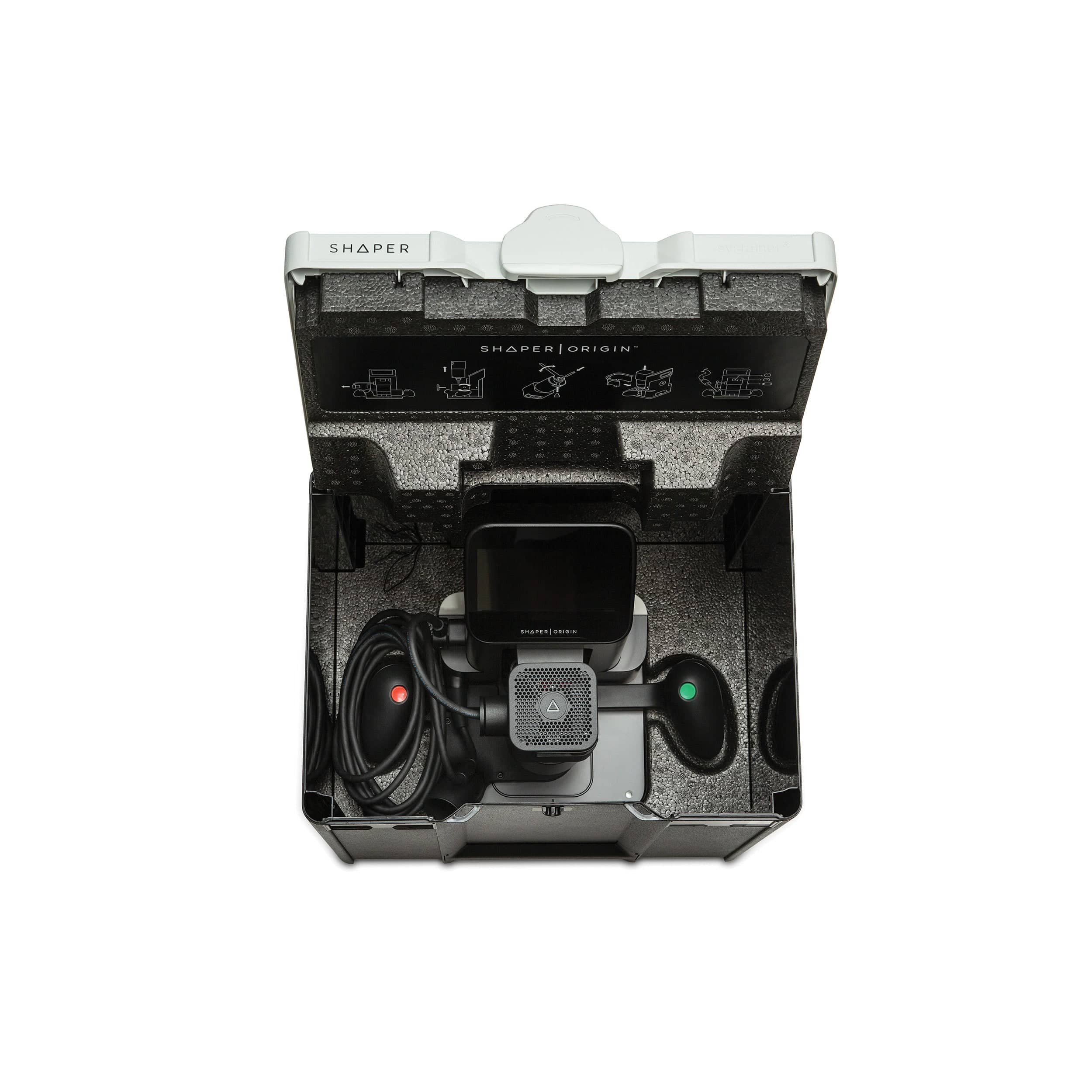

- (1) Shaper Branded Systainer³ M437 Carrying Case
- (2) ShaperTape (150' each)
- (1) Tool change accessories
- (1) Reusable transport locks
- (1) USB A/C dual flash drive
- (1) 1/4" Up-spiral flat router bit
- (1) 1/8" Up-spiral flat router bit
- (1) 60° Engraving router bit
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Bring digital precision to the craft of woodworking with Origin – the handheld CNC router. Cut with unparalleled precision, flexibility and efficiency. Origin is the world’s first hand-held CNC router. With onboard automatic cut correction, Origin makes precision cutting easy. Avoid the envelope limits of traditional CNC machines and tackle projects at a wide range of scales with a single, compact tool. With annual system updates and optional extensions, Origin is the only power tool that gets better with age. Create simple designs on the tool itself, or using Shaper Studio. You can also upload an existing design of your own.
Features:
- Automatic cut correction
- No programming required
- Intuitive touch screen interface
- On-tool design
- Suitable with a range of router bits
- Precise depth control
- Easy adjustments for tight fitting joints
- Cut perfect box joints and mortise and tenons
- Work at any scale
Specifications:
- Input Power: 120VAC, 60Hz. 7A
- Spindle Motor: 720W brushed AC motor, 10,000 - 26,000 RPM with load-compensating speed control, Soft-start, over-temperature and over-load safety cut-offs
- Collet: Includes a 1/4" collet that accepts any commonly available 1/4" shank router bits,1/8" collet sold separately (#190957)
- Depth Control: 43 mm (1.7”) of total Z-axis travel, digitally adjustable depth-of-cut, automated touch-off sensor
- Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction, 34 mm inner diameter by 39 mm outer diameter port dimensions, fits most standard 27 mm (35 mm OD) and 36 mm suction hoses (e.g. Festool, Fein)
- Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates, USB port allows easy offline transfer of design files
- Touch Screen: Capacitive multi-touch full-color LCD
- Dimensions: Origin: 13.35” (handle-to-handle) x 8.94” x 12.04”, Systainer: 15-1/2" x 11-1/2" x 17” (SYS 5 T-LOC Systainer)
- Weight: Origin: 14.9 lbs, packaged (with accessories) in Systainer: 23.5 lbs
What’s Included:
- (1) Shaper Origin Handheld CNC Router
- (1) Shaper Branded Systainer³ M437 Carrying Case
- (2) ShaperTape (150' each)
- (1) Tool change accessories
- (1) Reusable transport locks
- (1) USB A/C dual flash drive
- (1) 1/4" Up-spiral flat router bit
- (1) 1/8" Up-spiral flat router bit
- (1) 60° Engraving router bit
