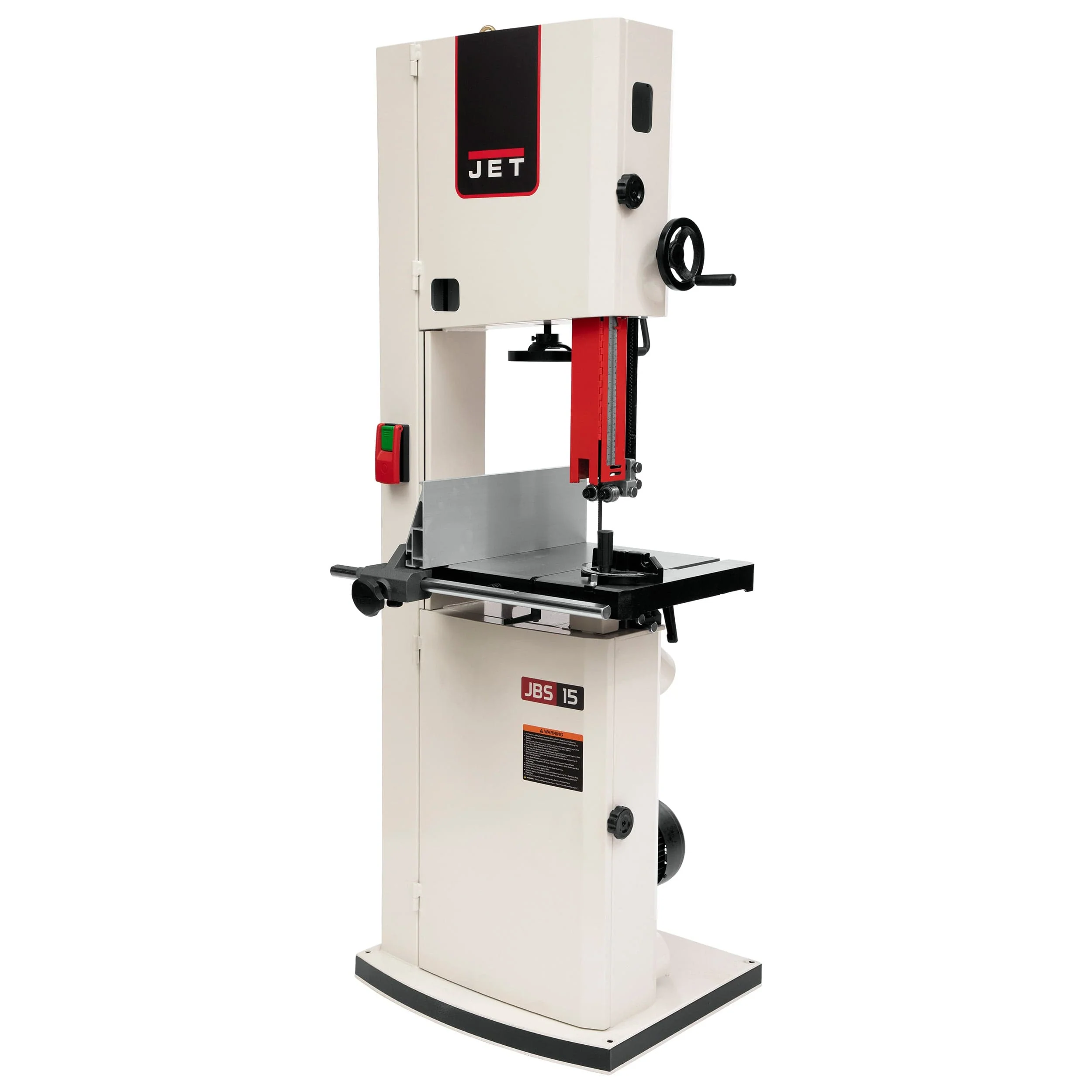

15" Woodworking Bandsaw - 1-3/4 HP 1 Ph 115/230V - JWBS-15

Tackle bigger boards, create smoother edges and master intricate cuts with the Jet® JWBS-15 15" Woodworking Bandsaw. You’ll gain greater re-saw capacity and throat depth, while getting the horsepower you need. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The Jet® 15" steel frame bandsaw is engineered to build great projects through superior performance.

Features:

• 14” resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels

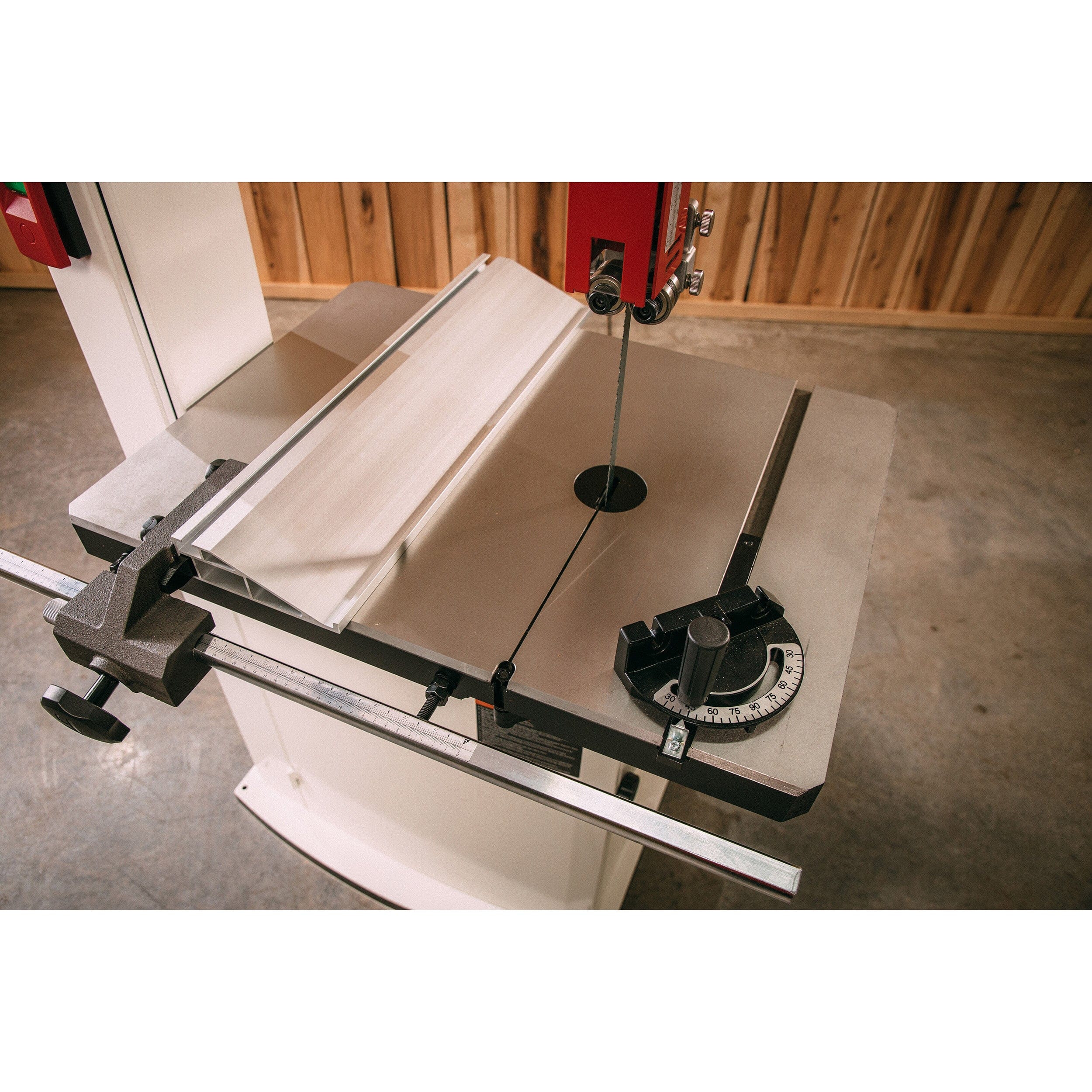

• 21-1/2" x 16" precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides

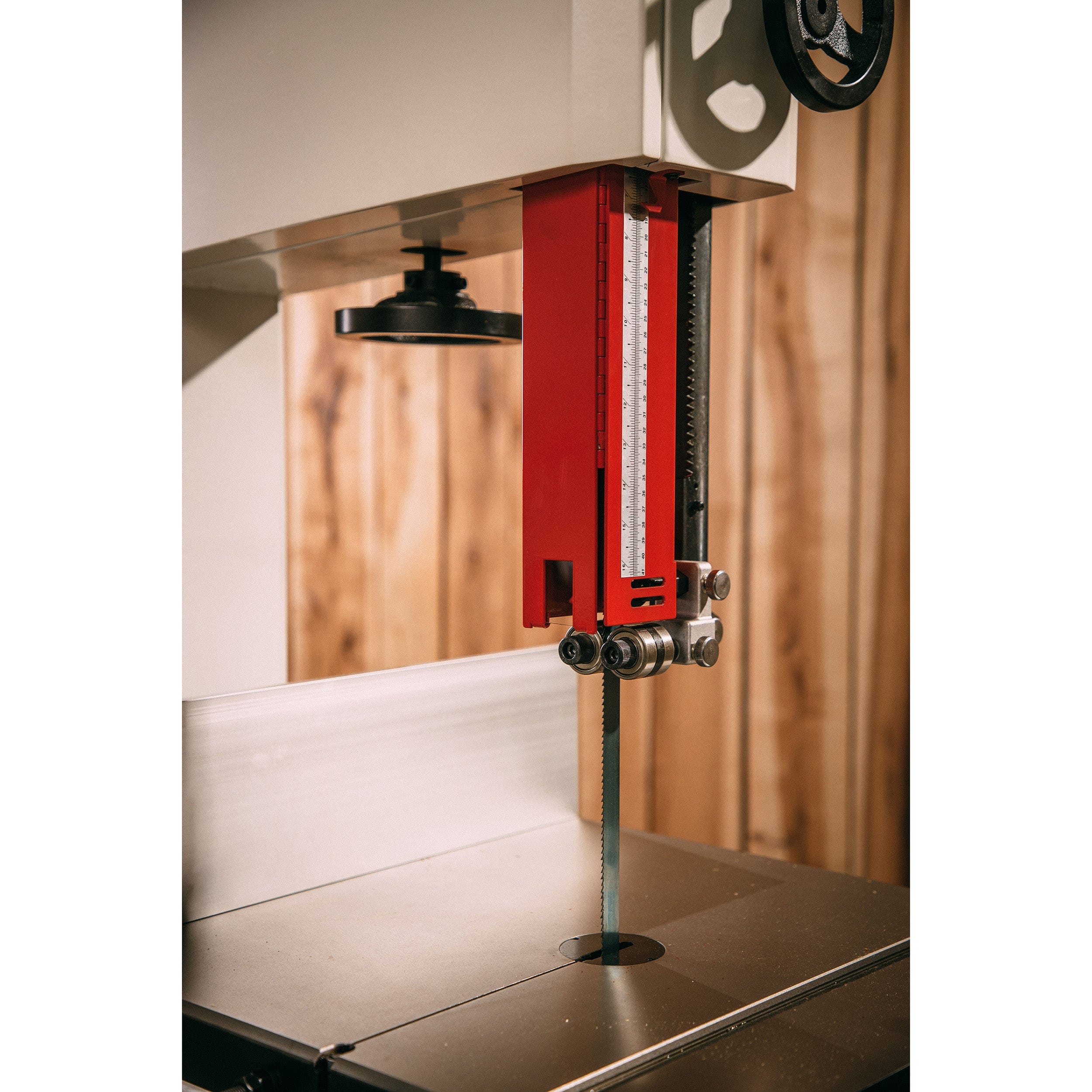

• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking

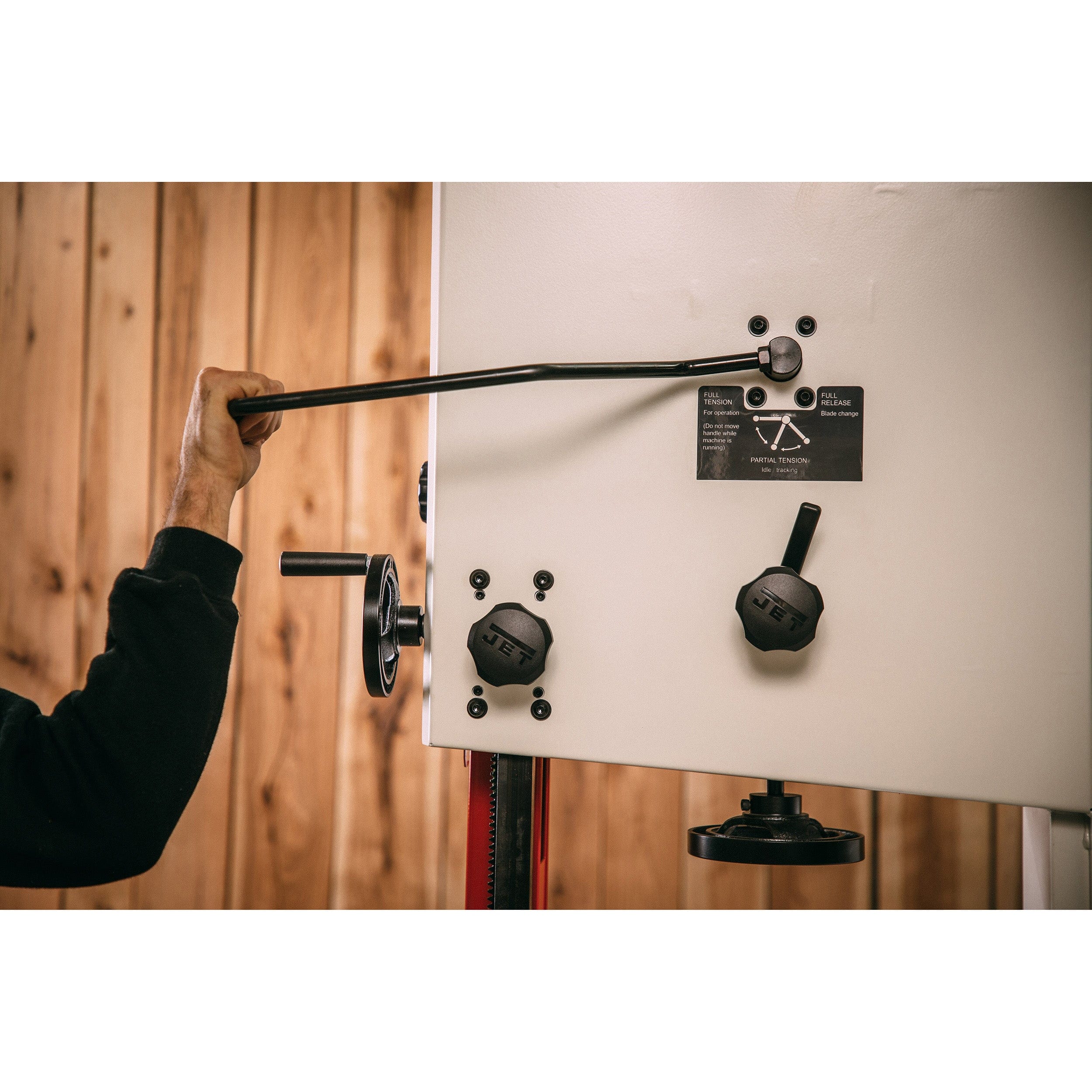

• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

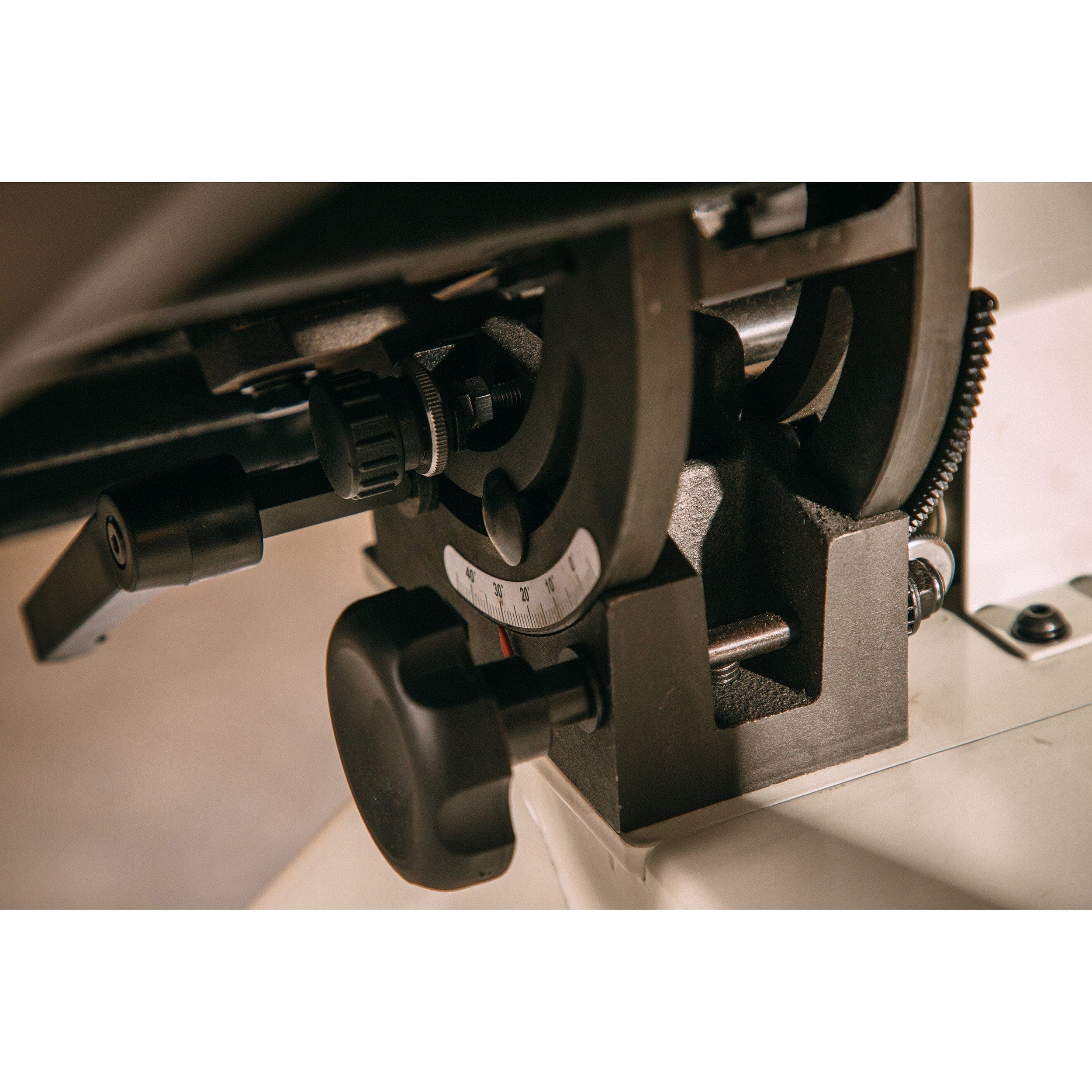

• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4" dust collection ports catch dust and chips at the source
• Table tilts 5° left and 45° right to accommodate a wide variety of cuts

Specifications:

• Motor Type: TEFC (totally-enclosed fan-cooled)
• Motor Power: 1-3/4 HP
• Motor Amps: 15/7.5A
• Cycle: 60 Hz
• Motor Phase: 1 Phase
• Voltage: 115/230V (prewired 115V)
• Recommended Circuit Size (Amps): 20A
• Power Transfer: Poly V-belt
• Wheel Diameter: 14-3/4"
• Cutting Capacity Height: 14"
• Cutting Capacity Width: 14-1/8"
• Maximum Rip - Left of Blade w/ Fence: 12-3/8"
• Maximum Rip - Left of Blade w/ Fence: 2-7/8"
• Blade Length: 133"
• Maximum Blade Width: 1"
• Minimum Blade Width: 1/8"
• Blade Speed: 3100 SFPM
• Table Size (L x W x T): 21-1/2" x 16" x 2"
• Table Tilt: 5° left, 45° right
• Table Height from Floor: 35"
• Resaw Fence Dimensions (L x W x H): 18-1/8" x 1-3/4" x 6"
• Overall Dimensions (L x W x H): 29-1/2" x 21-5/8" x 74"
• Dust Port Outside Diameter: 4" (x2)
• Dust Collection Minimum CFM Required: 400 CFM
• Net Weight: 382 lbs.
• Shipping Weight: 450 lbs.

What's Included:

• (1) Jet® JWBS-3 15" Bandsaw
• (1) Bandsaw Blade - Hook - 0.0256" x 1/2" x 133" - 6 TPI
• (1) Rip Fence/Resaw Fence
• (1) Miter Gauge
